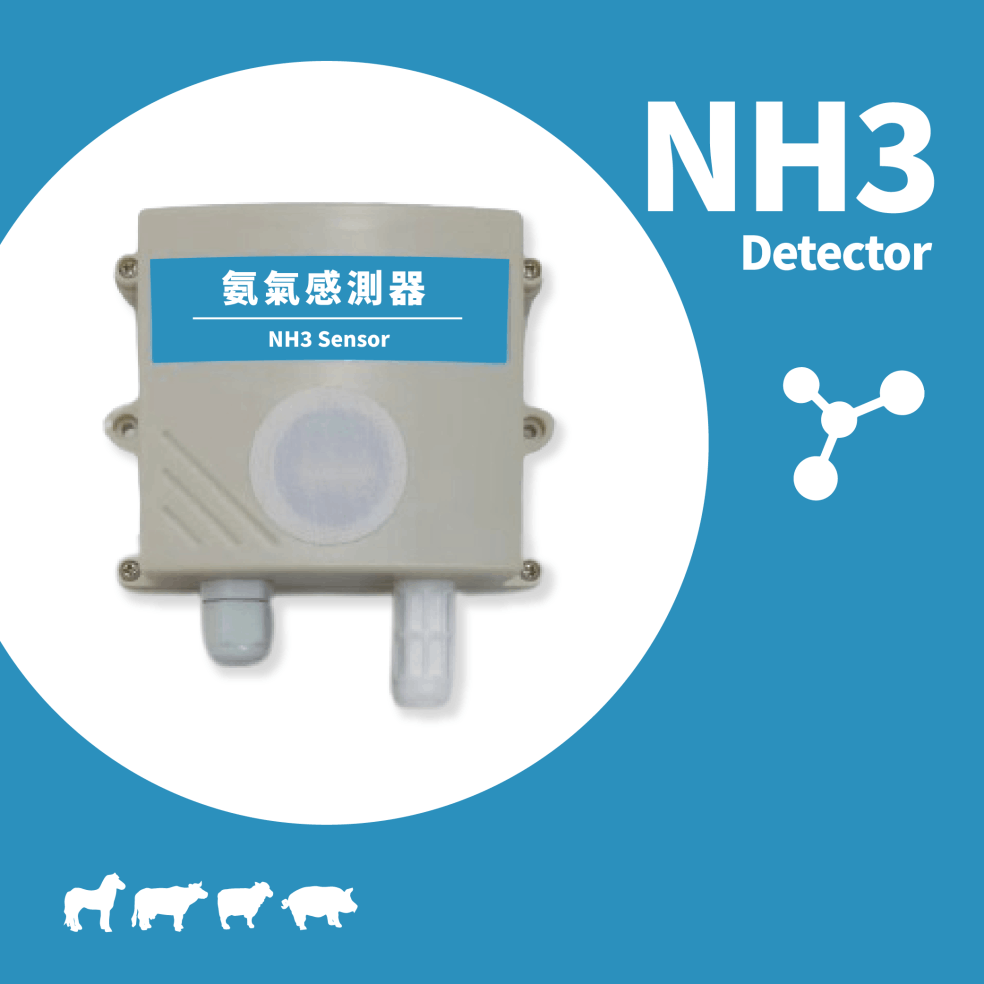

Fixed ‧ NH3 Gas Detector

Long term & Continuous measurement
Measures in real time the concentration of Ammonia in ambient air.

What is NH3

gas detector ?

NH3 gas detector uses a professional sensor - the NH3 concentration sensor as the core detection component.

It has the characteristics of wide measuring rang, high precision, good linearity, good versatility, convenient operation and installation.

Smart Bridge Information's gas detection rang provides high-precision gas detection and measurement.

Our NH3 gas detector can effectively support continuous sampling, measurement and detection of ambient gas quality and NH3 concentration between 0 ~ 100 ppm.

It's  then unified and controlled by the main control center-Gateway system, which allows users to browse and track the gas concentration status of the work area at any time, and can meet standards and safety when formulating gas environmental control targets to reduce the risk of serious harm to health.

How does a NH3 gas detector work ?

How it work ?
Our NH3 gas detector is used for NH3 concentration measurement, and the device is used to measure one single gas concentration in an area at a single point in time.

How is a NH3 gas detector operates ?
☑   RF Pairing:detector and gateway
☑  Choose an appropriate location to install

The data will be tested once every minute through the NH3 gas detector, and the measurement result value (PPM) will be sent directly to the equipment main control center-Gateway through 2.4Ghz RF IoT transmission technology, and finally uploaded to the cloud center.

Supports users created personal accounts. Users can log in to the system remotely with their Account ID / Password, and enter the system interface center to browse, which can meet the user's remote monitoring needs at any time, to grasp real-time on-site data or track relevant historical data.

Applications

• Farm
• Greenhouse
• Environmental Control of Livestock Farms
• Soil Fertilizer Management
• Other Industry Applications

Features

• High-Precision
• Good Linearity
• Good Versatility
• Wide Measurement Range
• Quick Installation and Easy to use
• Strong and Resistant to corrosion
•  Measure a single type of gas at a time

Mobirise

Product Parameters / Specification

Does not cause system burden and maintains quality requirements

Accuracy

1

0 ~ 100 ppm (high accuracy) ± 8%

Stability

2

≤ 2% of range / month

Response Time

3

90 seconds

Warm-up Time

4

≥ 5 minutes

Operating Temperature

5

-10 ~ +50℃

Humidity

6

15 ~ 90% RH  (non condensing)

Resolution

7

1 ppm

Repeatability

8

≤ 2%

Measuring Rang

9

0 ~ 100 ppm

Power Consumption

10

0.15 W

Service Life (months)

11

12 months
