9400N-USB  Module

Let's find the product and have a new experience.

The module design is for UART/USB interface application. Now, this module can be used for ID card, face recognition, etc. Especially suitable for public spaces, such as hospital, school, offices and shops, etc.

module,thermopile array sensor,Thermal Image products

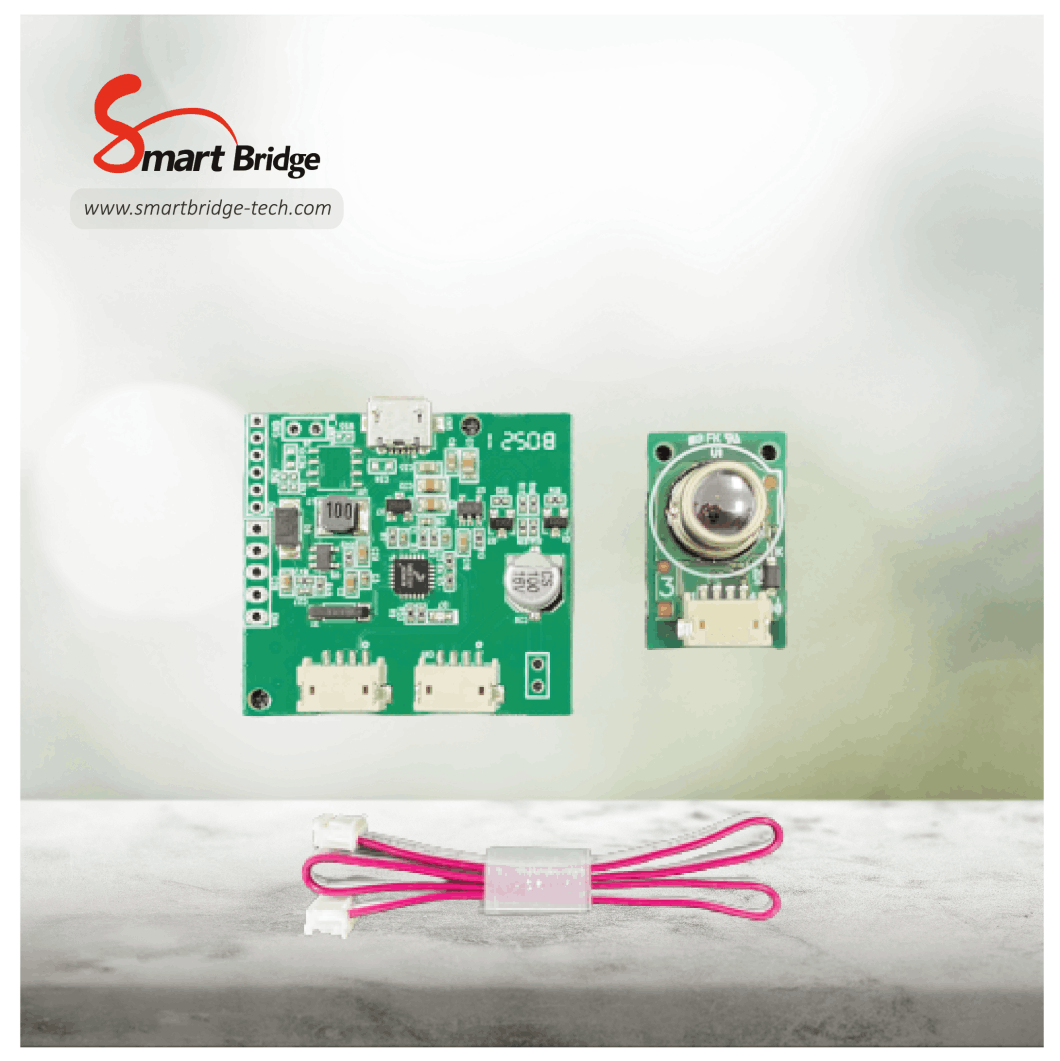

9400N-USB  Module

This module 9400N-USB is a type of module series for our temperature detector serial. Using 8*8 Thermopile Array sensor to capture the temperature of human body. It can measures the thermal energy to capture and calculate through a contactless method. And it send out temperature by UART and USB 2.0 interface.

Module Specification

● Module Specification

 ¹  Power is from USB bus power 5V
    Power consumption is about 100mW

 ²  Data output: USB port and UART port from
    module

 ³  8*8 Thermolpile Array sensor detect 10~15uM
    wavelength

 ⁴  Detect area : forehead area 30~50 cm

 ⁵  Temperature accuracy : ±0.3° C


● Control Board Specification

 ¹  Low power MCU from NXP

 ²  Out Interface :

     - USB and UART for data output
     - Power from USB or connector

 ³  UART specification : 19200, 8N1

Thermopile Array sensor specification

¹  Resolution : 8*8 thermal image

²  FOV : 35 degree

³  Distance : 30 to 40 cm
